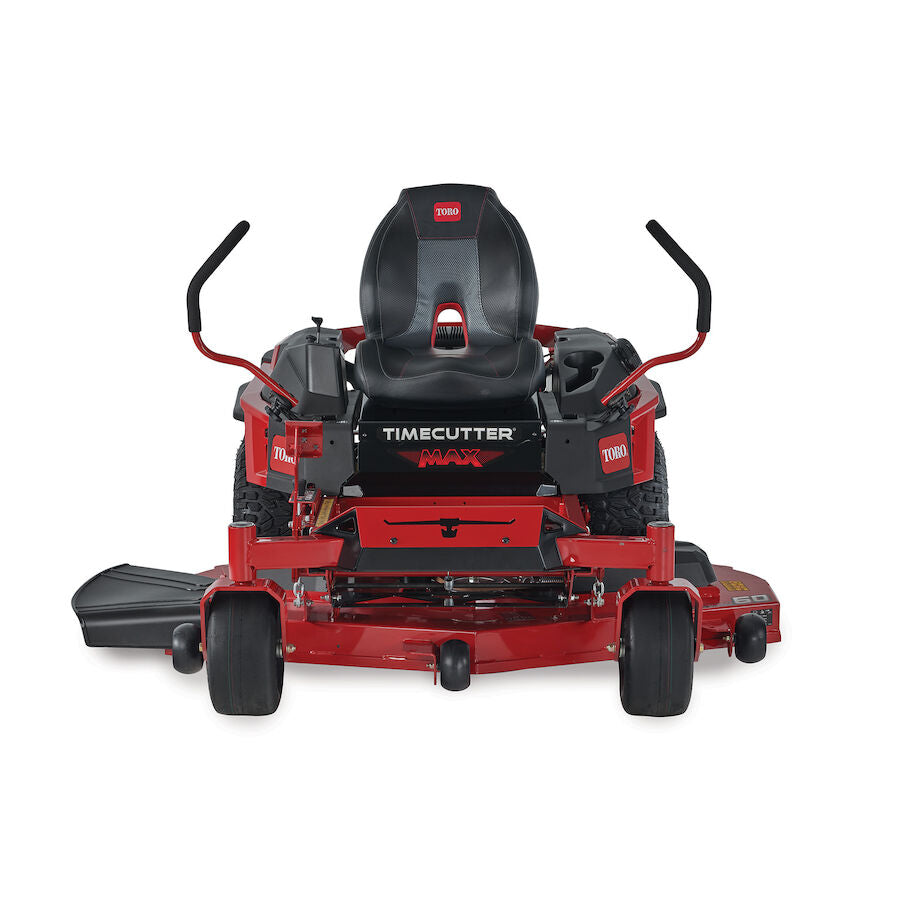

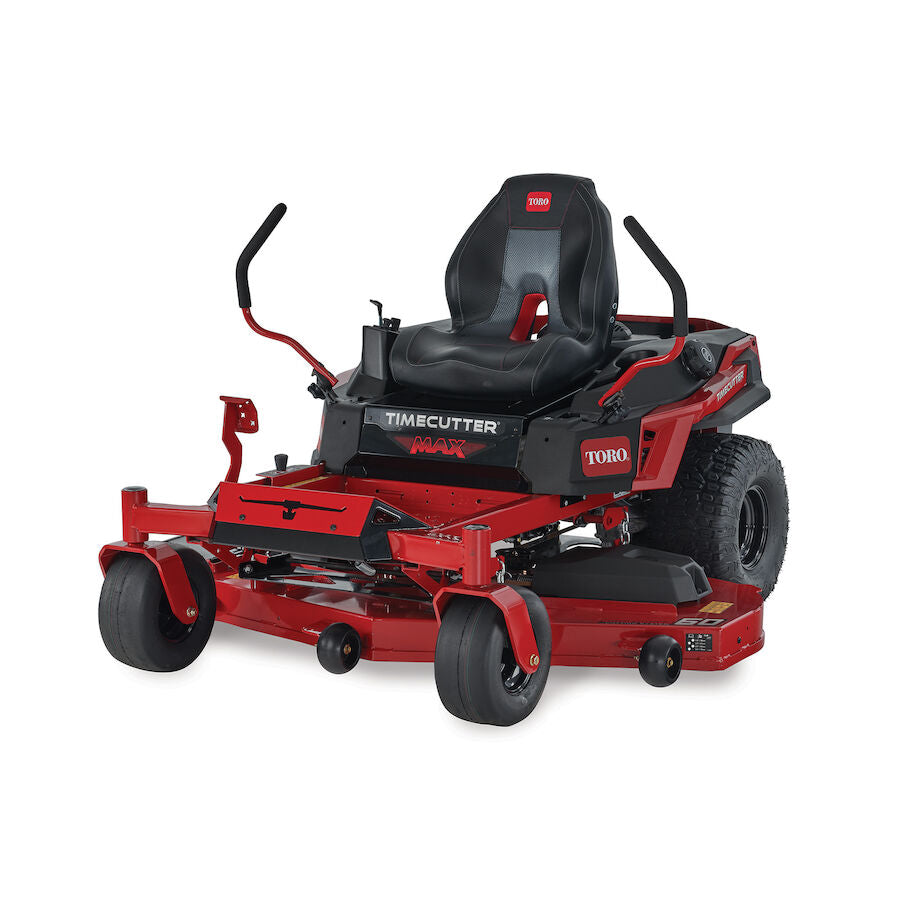

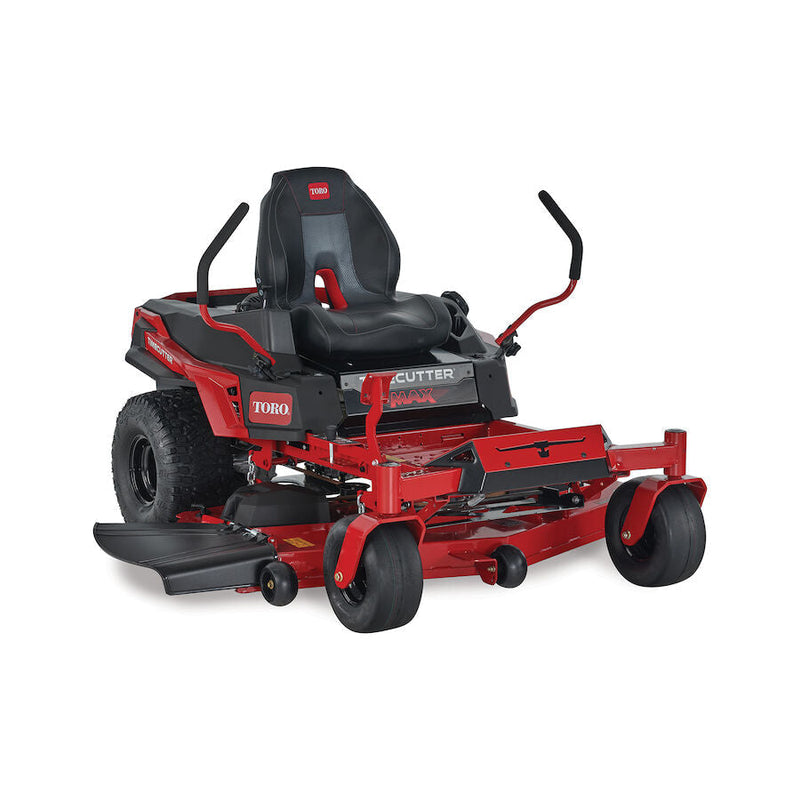

Toro Timecutter 77601 MAX 23hp Kawasaki Engine 60″ FAB Deck Z-Turn Mower
Description
Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged Deck doesn’t flinch no matter what you throw its way.
- The gaming-style seat gives you big time support exactly where you need it.
- The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Box Dimensions | 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged |
| Deck Material | 10 Gauge Steel |
| Deck Size | 60 in / 152 cm |
| Discharge Chute | Side |
| Drive System | Hydrostatic |
| Drive Tires | 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 – 5.0 in. / 2.5 – 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Standard |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear |
| Transmission | Dual Hydrostatic HG-ZT2800 |
| Washout Port | Standard |
| Weight | 668 lbs / 303 kg |
