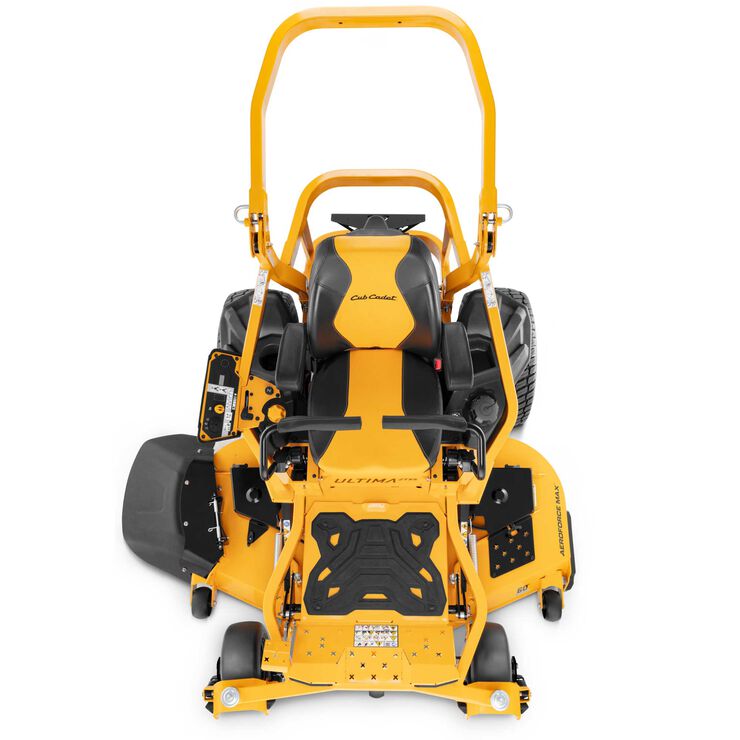

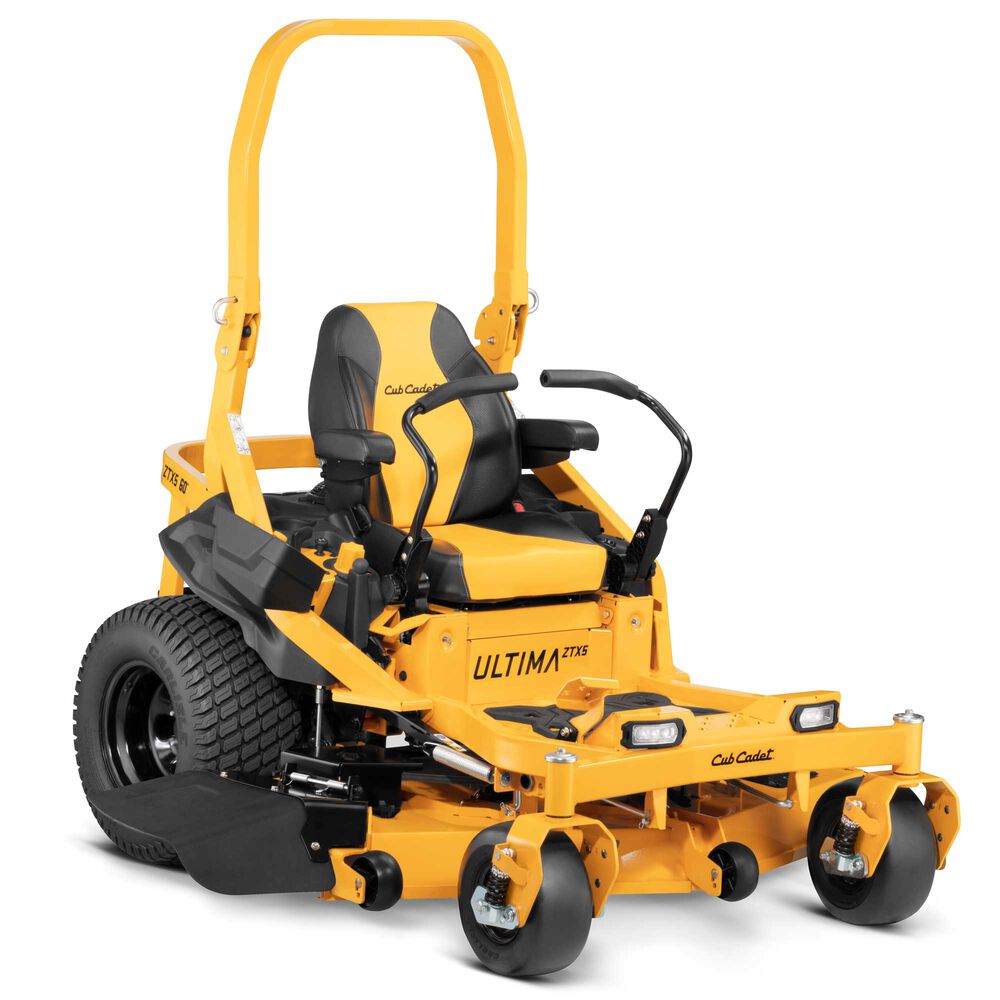

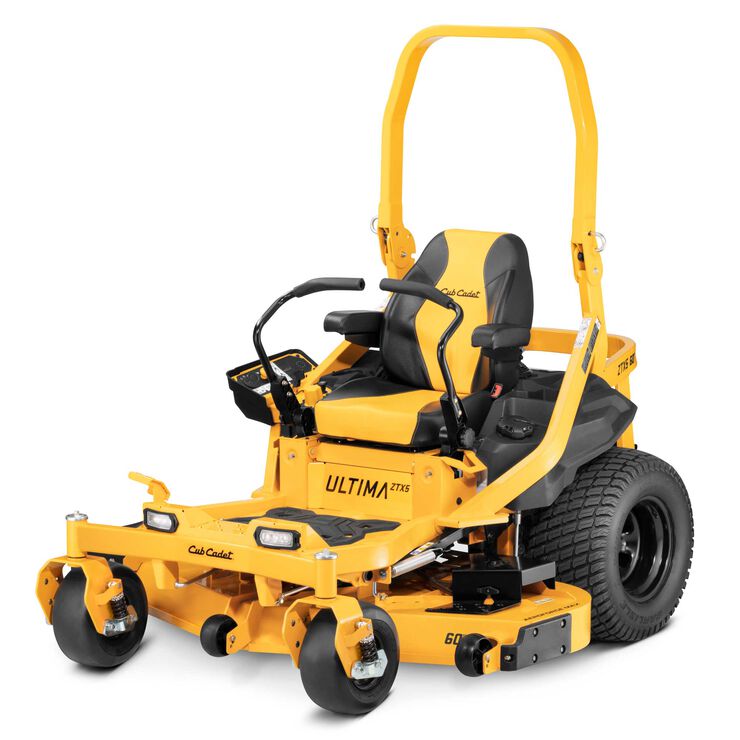

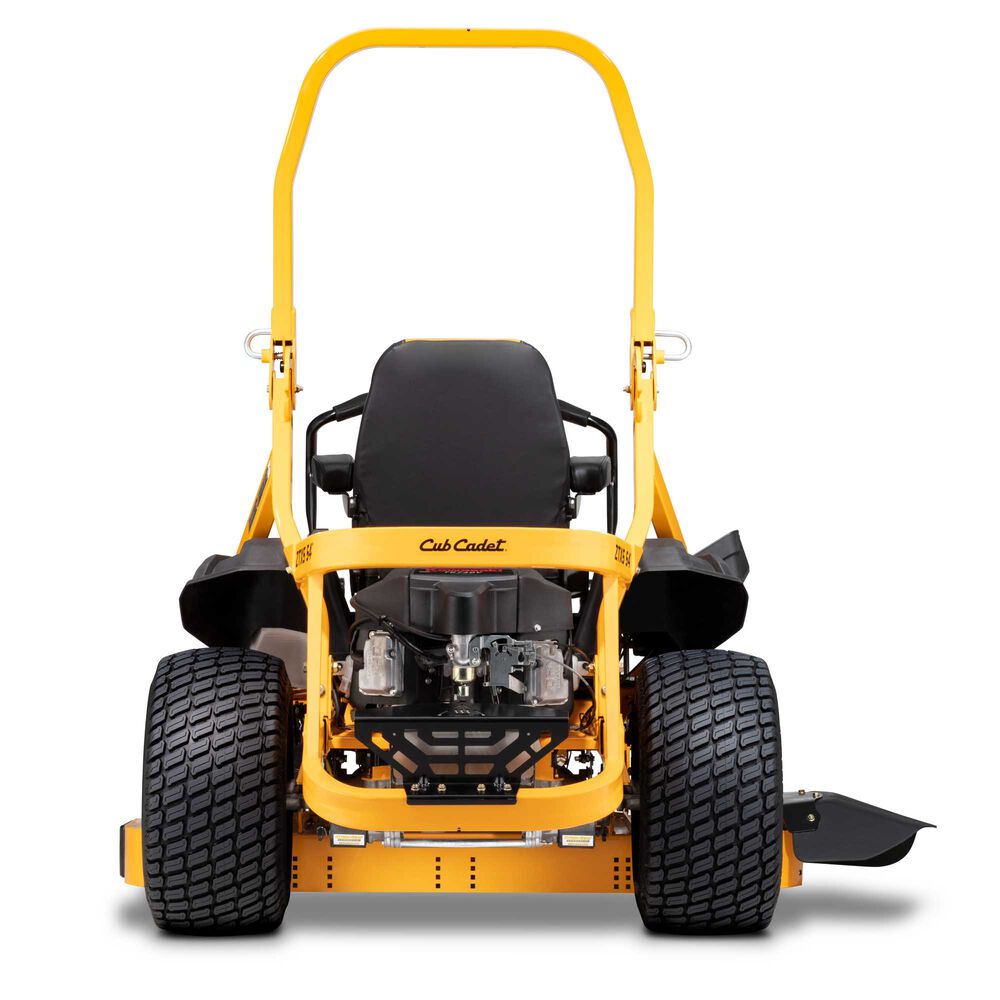

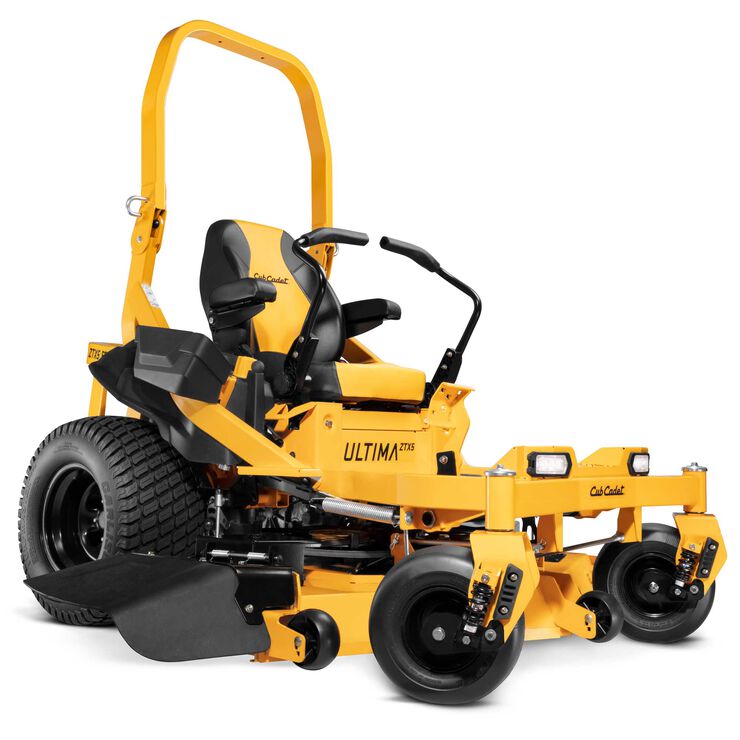

Cub Cadet ZTX5 60 Ultima Series™ ZTX (47AKAAA8A10)
Description
Description
The Cub Cadet® Ultima Series ZTX5 60 is a 60-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.
Features:
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a powerful 24 HP* Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
- Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
- High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue
Specifications:
Engine
- Brand: Kawasaki®
- Series: FS Series
- Model Number: 730V
- Displacement: 726 cc
- Output: 24 HP
- Cylinders: Twin
- Fuel Delivery: Carburetor
- Starting System: Electric Start (Ignition Key)
- Fuel Tank Capacity: 5.5 gal US (20.82 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Air Filter: Single element
- Oil Filter: Yes
- Oil Capacity: 2.1 qt US (2 L)
- Governor: Mechanical
- Choke: Separate
- Fuel Gauge: Yes
Battery
- Battery Type: AGM (Absorbent Glass Mat)
- Cold Cranking Amps (CCA): 210
- Voltage: 12V
Drive System
- Transmission: Hydro-Gear ZT 3200
- Type: Hydrostatic
- Forward Speed: Up to 8.5 MPH (13.7 km/h)
- Reverse Speed: Up to 3.5 MPH (5.6 km/h)
Cutting Deck
- Cutting Width: 60 in
- Material: 10-gauge steel with 2-gauge reinforcement
- Construction: Reinforced Fabricated
- Blade(s): Three
- Deck Engagement (PTO): Electric
- Deck Lift: Foot Pedal with Dial Adjust
- Height Range: 1″ – 4.75″
- Deck Positions: 17
- Anti-Scalping: Three gauge wheels
- Deck Wash: No
- Mulch Kit: Available separately
Chassis & Build
- Frame: 1.5″ x 3″ tubular steel
- Turning Radius: 0° (Zero-Turn)
- ROPS (Roll-Over Protection): Yes
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Controls & Comfort
- Steering Control: Lap Bars
- Brakes: Disc
- Cruise Control: No
- Seat Type: 24″ High-Back
- Armrests: Yes
- Seat Adjustment: Lever
- Front Suspension: Caster Suspension
- Operator Presence System: Yes
- Parking Brake: Integrated in Lap Bars
Wheels & Tires
- Front Tires: 13″ x 6.5″ – 6″
- Rear Tires: 23″ x 12″ – 12″
- Tire Tread: Turf Master / Multi Trac
Additional Features
- Hour Meter: Yes
- Headlights: Dual-LED
- Cup Holder: Yes
Warranty
- Residential: 4-Year / 800-Hour Limited Warranty
- Commercial: 4-Year / 800-Hour Limited Warranty
- Frame: Lifetime Limited
- Deck Shell: Lifetime Limited
