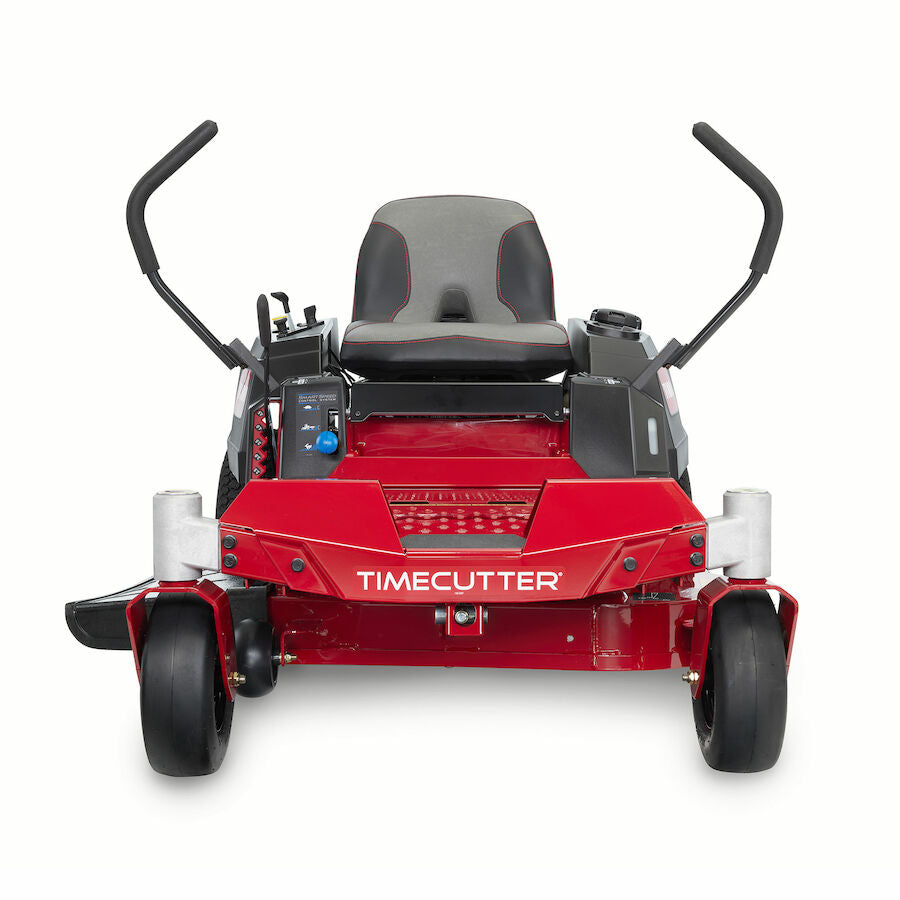

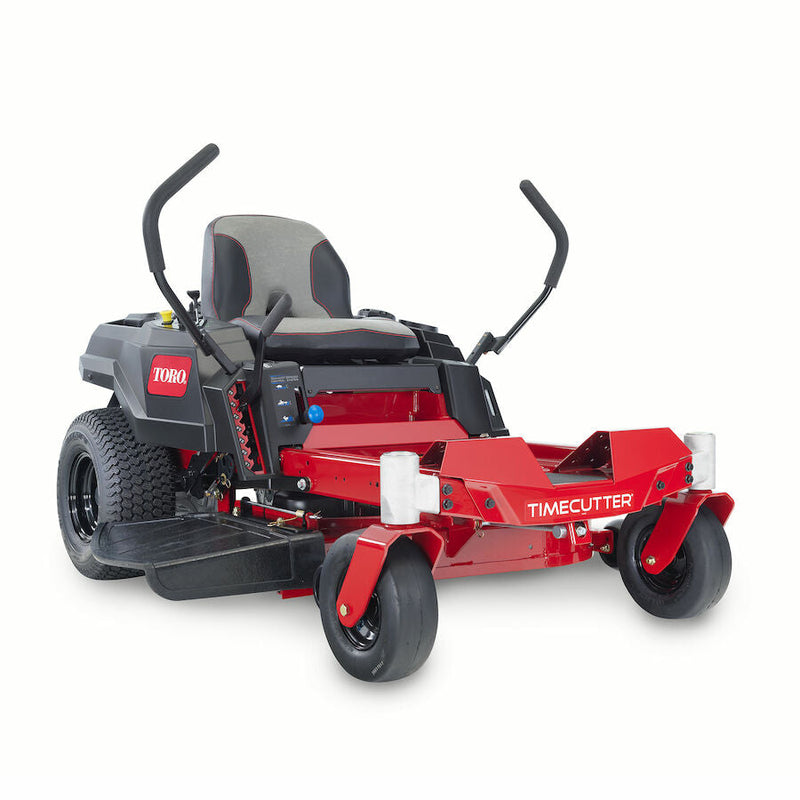

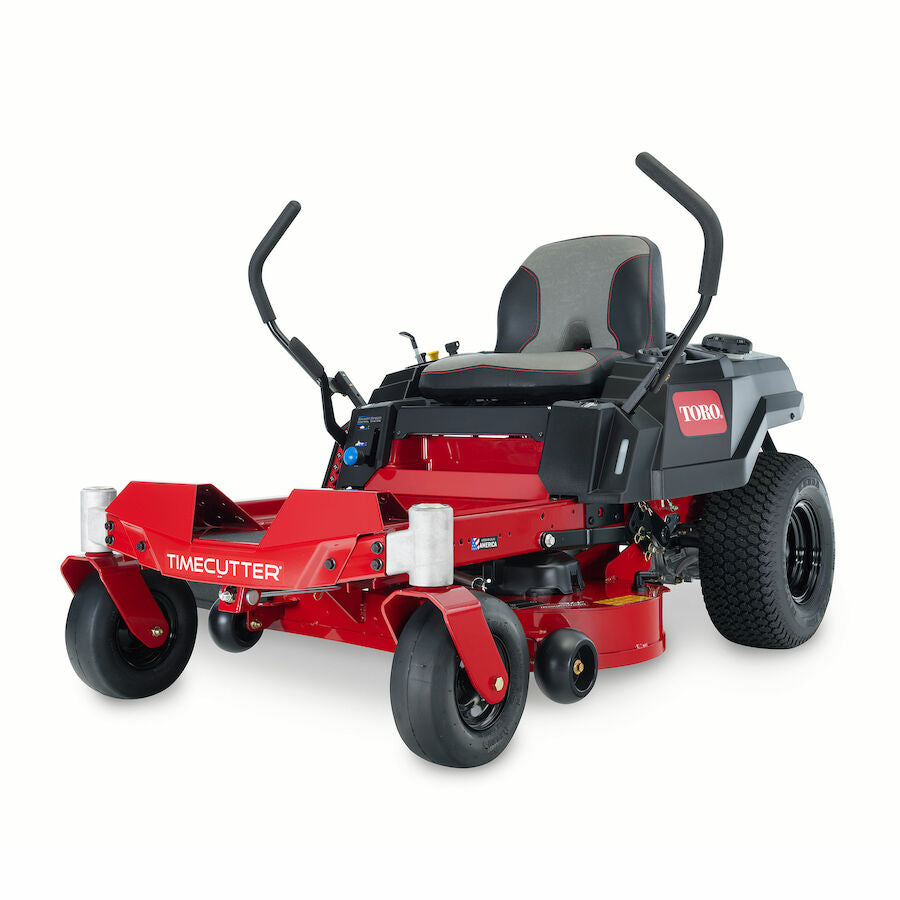

Toro Timecutter 22hp 724cc Briggs & Stratton Engine 34″ FAB Deck Z-Turn Mower #77301
Description
34 in. (86 cm) TimeCutter® Zero Turn Mower
- Built to tackle big jobs while fitting in small spaces.
- Built Like a Bull – IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
- Take control over your mowing speed, while never sacrificing blade tip speed.
- Step-Through Front End – Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
- Storage Cubby – Now there’s a convenient and safe space in your under-seat cubby to store important items.
- Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
- Commercial DNA courses through these machines’ veins with the same technology pros depend on.
- Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more
The ultimate zero-turn mower for tackling big lawn jobs while also fitting in small spaces. This small but mighty TimeCutter with powerful 22 HP* V-Twin Briggs & Stratton engine and 34″ IronForged® deck allows you to create both a beautiful lawn and have more time than ever to enjoy it. The mower’s compact design makes for easy storage. Toro stands behind its mowers with a 3-year, 300-hour commercial engine limited warranty.† And as a Toro owner you’ll have access to more than 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.
Specifications
| Air Filter | Standard Briggs & Stratton Air Cleaner |
|---|---|
| Anti Scalp Wheels | 2 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Design | 0.164 in. / 0.417 cm Steel with Blade Stiffner |
| Blade Tip Speed | 18,179 ft/min / 5,541 m/min |
| CARB Compliant | Not CARB Compliant |
| Caster Tires | 11 in. x 4 in. – 5 in. Pneumatic |
| Clutch | Electromagnetic |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Cutting Width | 34 in / 86 cm |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 18 in. x 6 in. – 8 in. (45.7 cm x 15.2 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 22 hp Briggs and Stratton EXI 724cc |
| Engine Brand | Briggs and Stratton |
| Engine Displacement (cc) | 724 cc |
| Engine Horsepower | 22.0 hp |
| Engine Power (kW) | 16.4 kW |
| Foot Operated Height of Cut | Optional |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Fuel Capacity | 3 gal. / 11.4 L / 12 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.5 – 4.5 in. / 3.8 – 11.4 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Dampeners | Yes, Non-Cavitating |
| Hydraulic Drive | Standard |
| Number of Blades | 2 |
| Product Type | TimeCutter |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection (ROPS) | Optional |
| Seat | 16″ Handcrafted |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Dual Wrap Around Levers |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2100 |
| Washout Port | Standard |
